Description

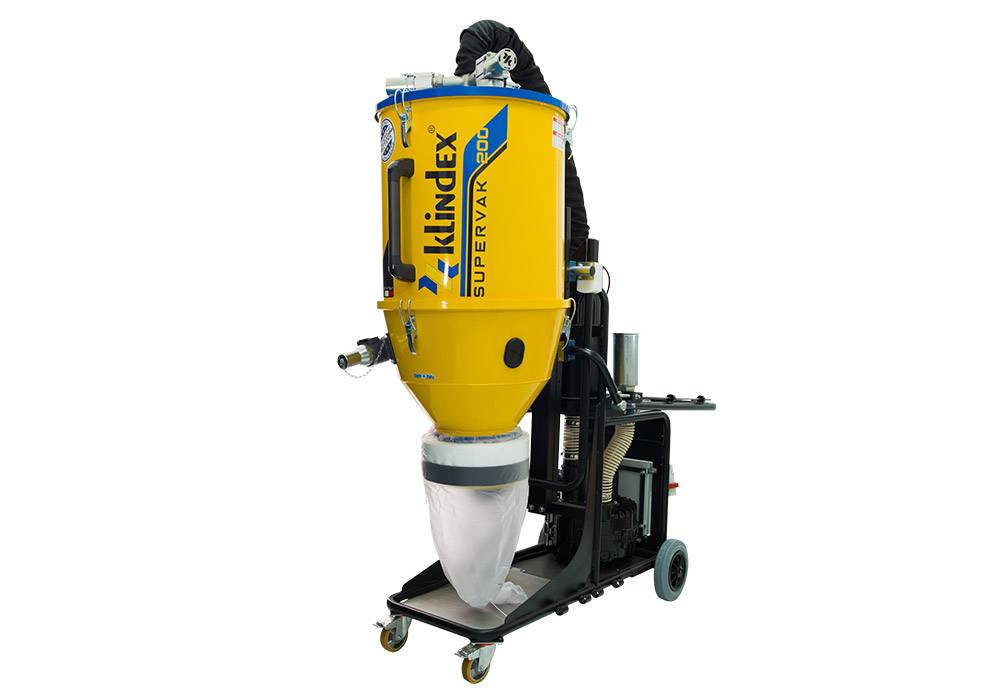

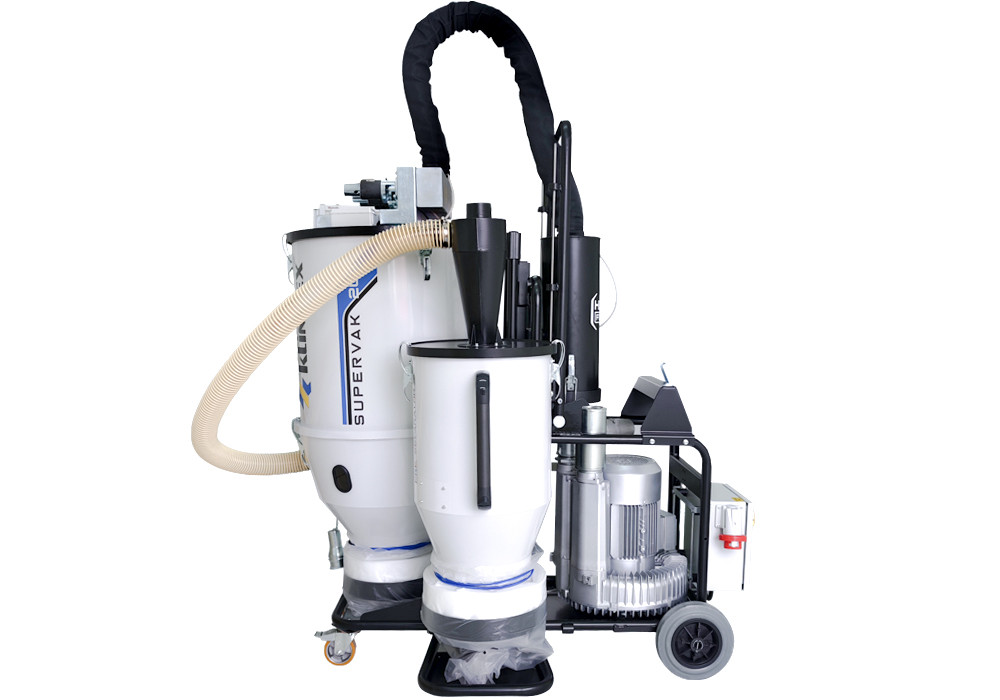

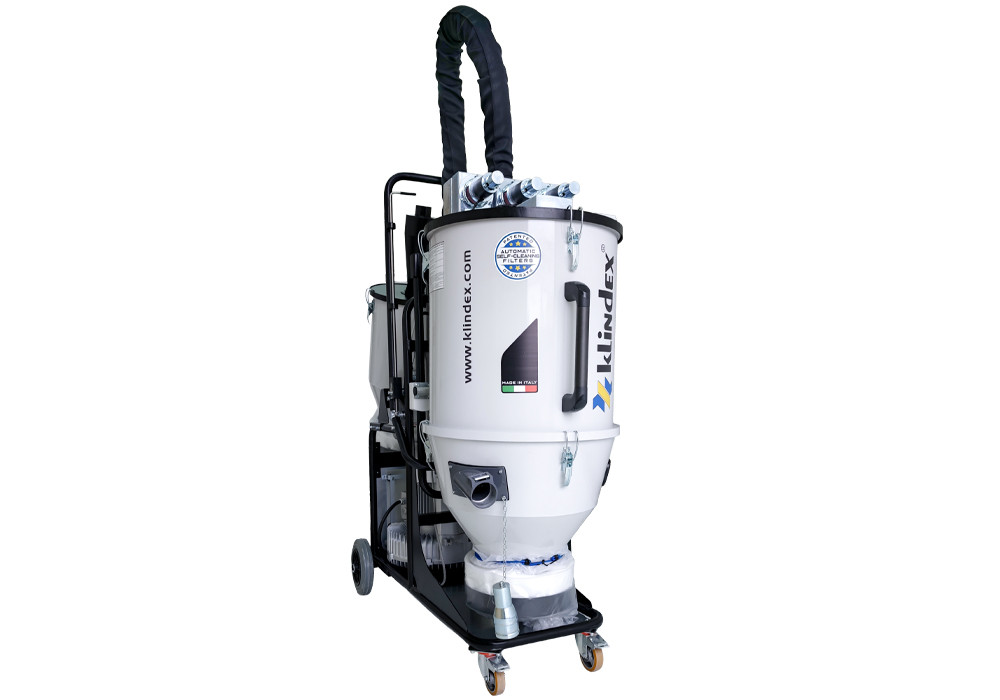

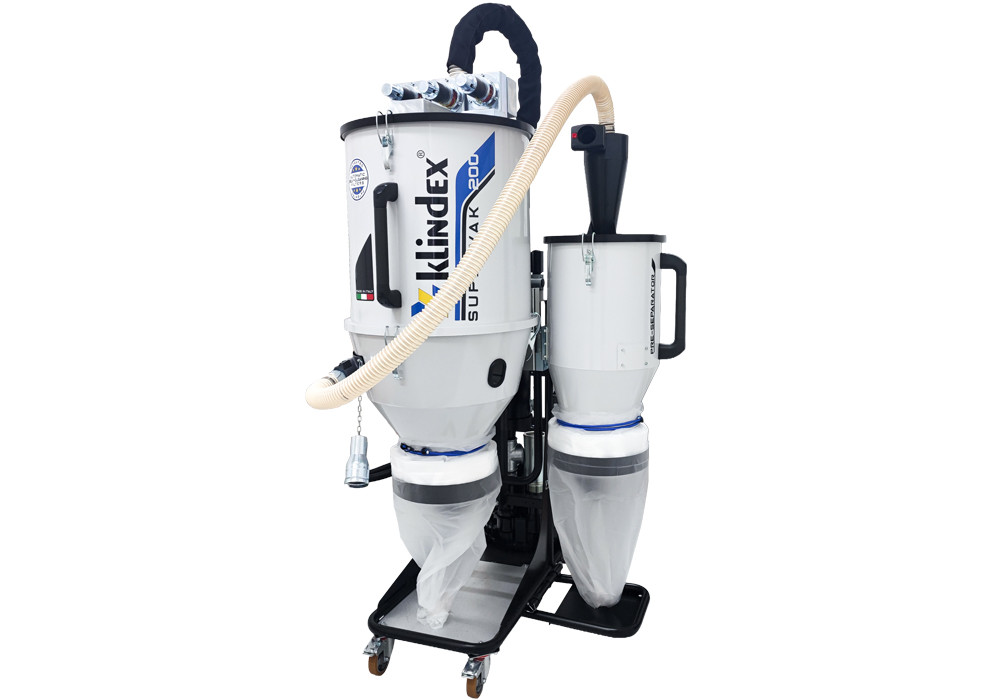

SUPERVAK 200 is the ideal dust collector for all those who have to vacuum big quantities of dust and who have to carry the machine from a place to another. It has been specifically designed to be connected to floor sanders, to grinders, to scarifiers or to shot blasting machines. It is equipped with a telescopic frame which can be used:

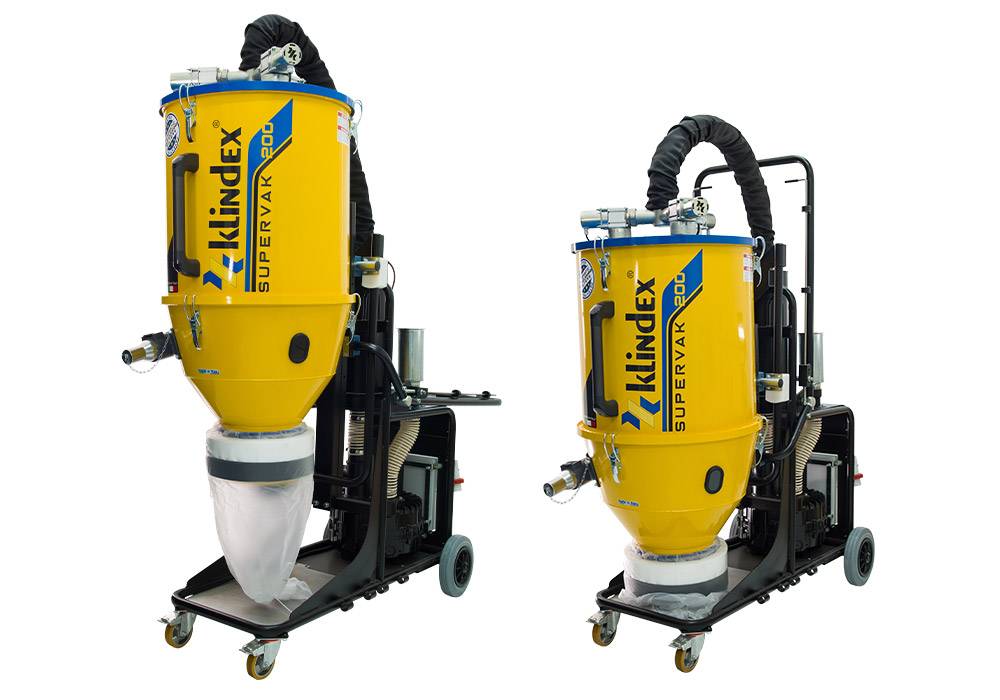

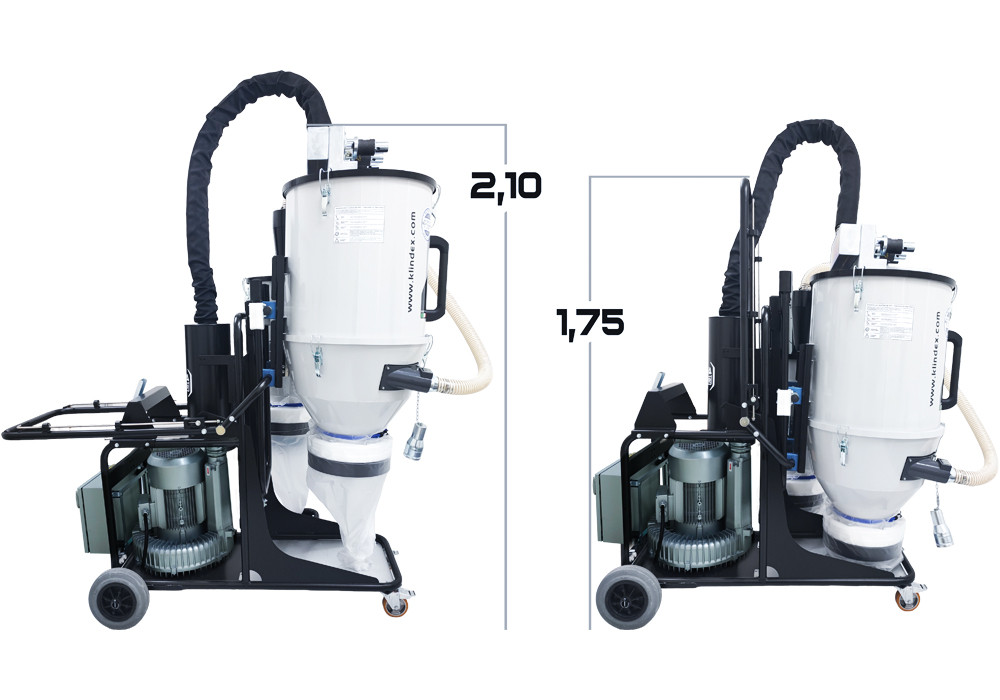

• In the “high position” while working to greatly amplify the “cyclone effect” and the filtering power. The higher is the filter chamber, the easier is the separation of dust from the air, resulting in less clogging of filters.

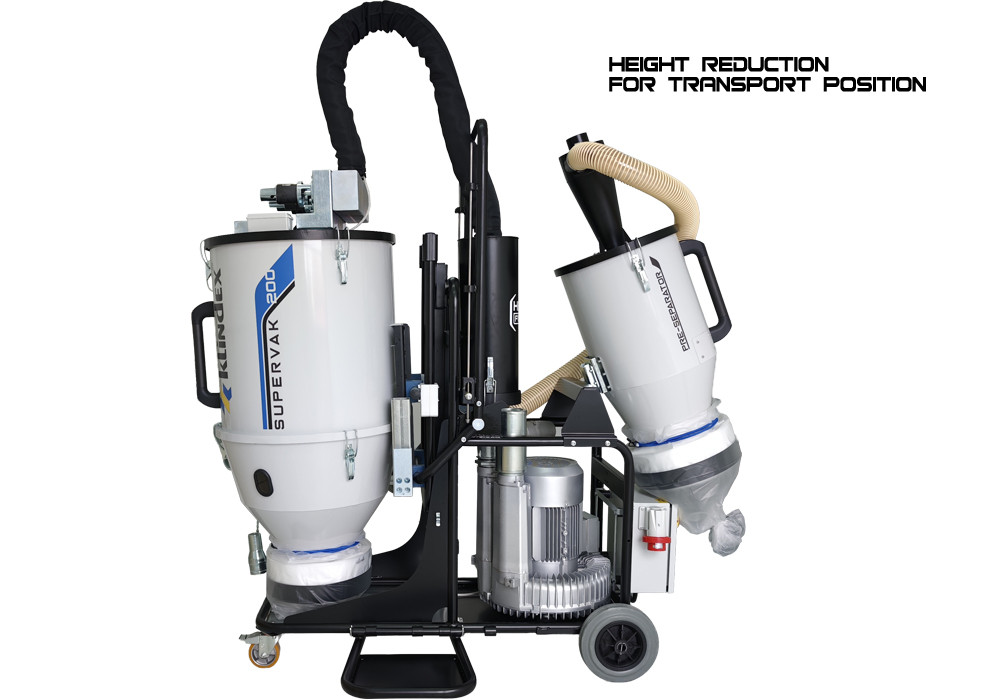

• In the “low” position for transportation in order to reduce its dimensions and to be easily loaded even in small vans.

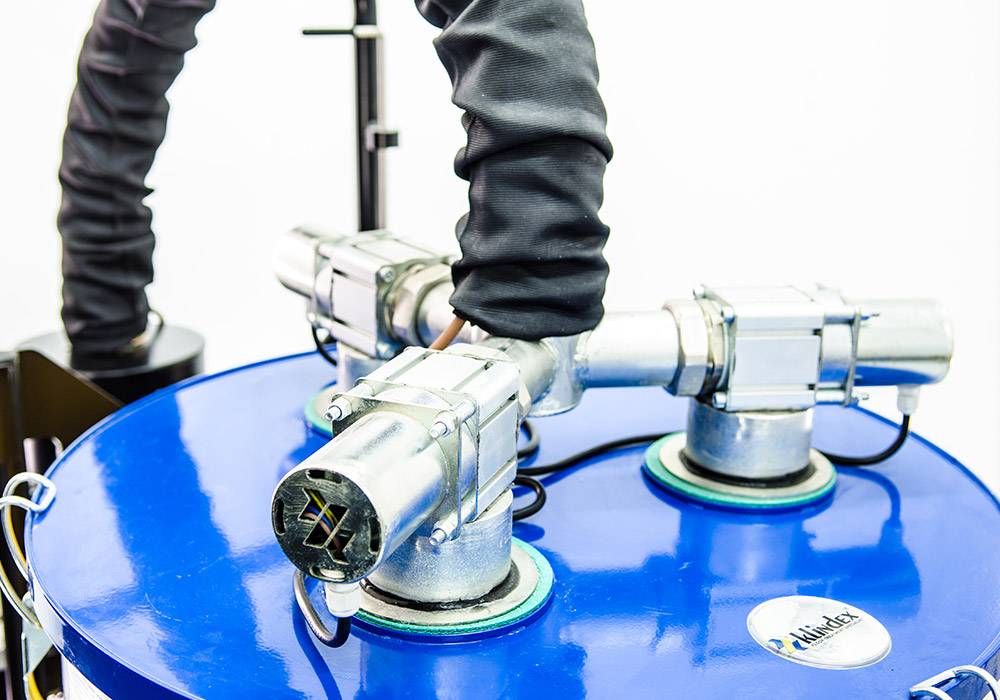

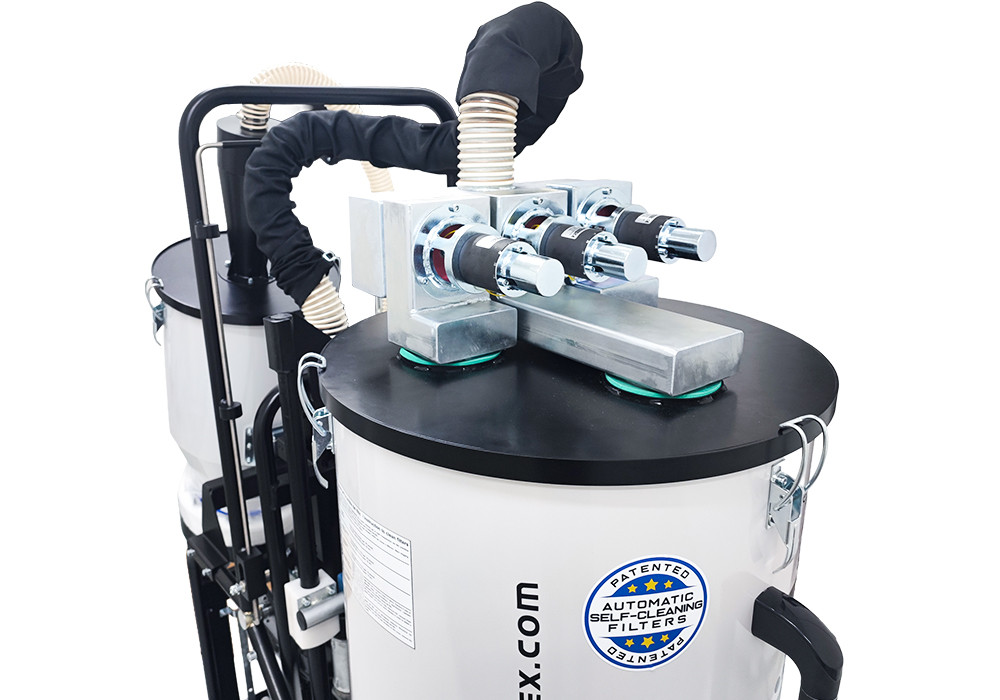

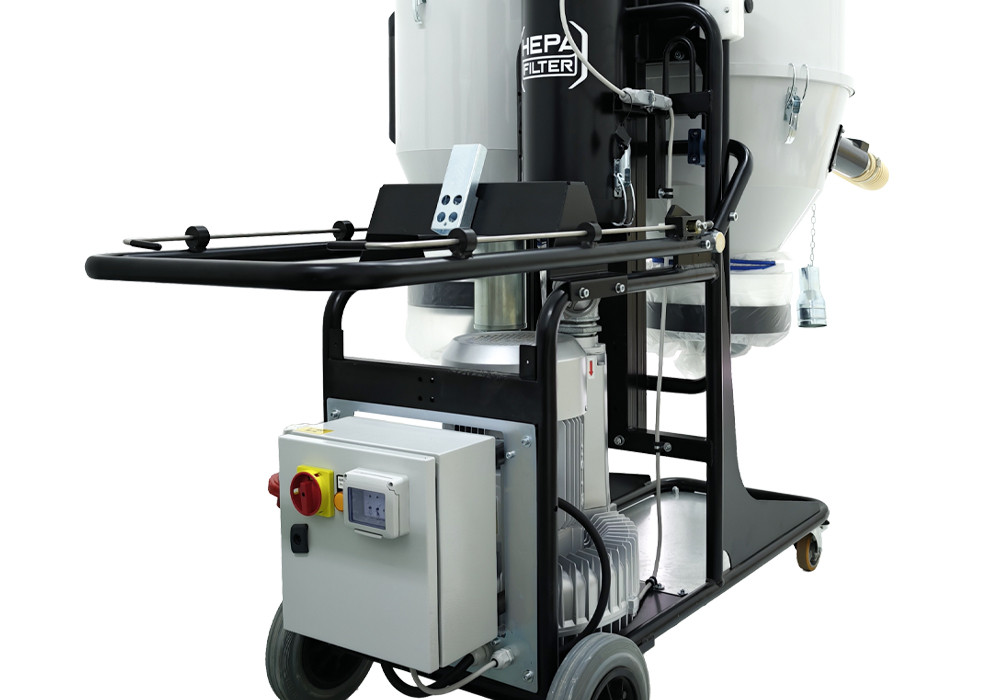

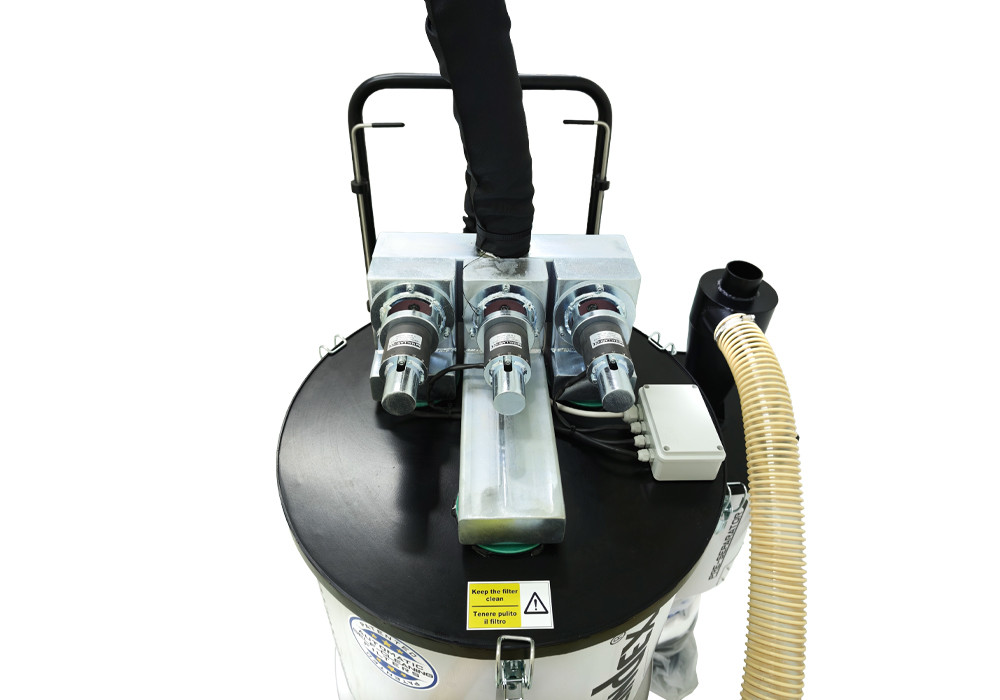

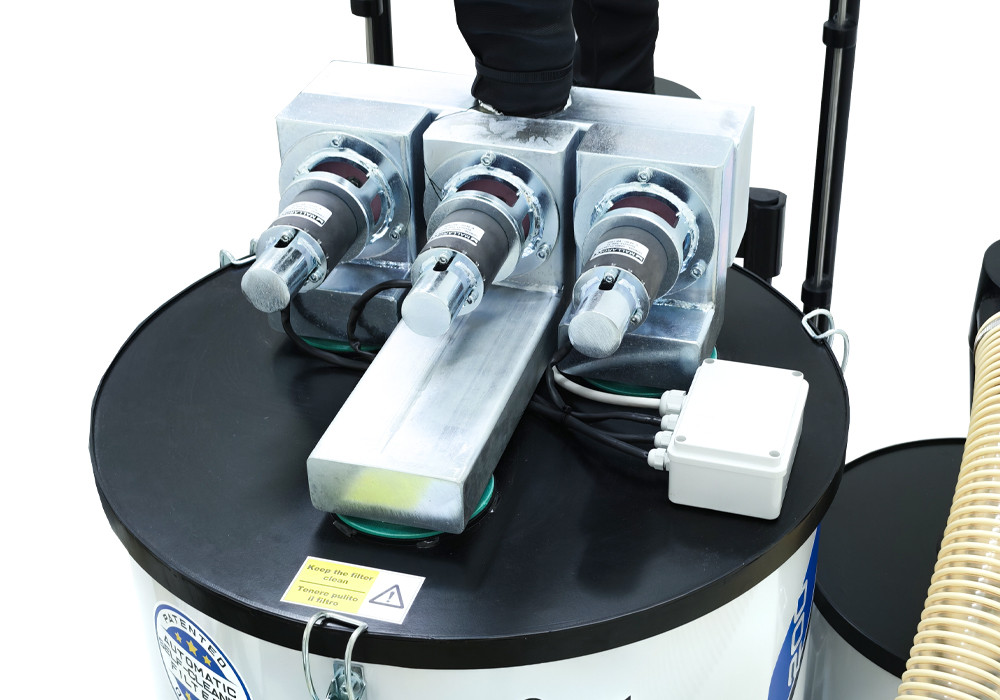

The ASC series is equipped with a control unit with 4 automatic self-cleaning programs that greatly increases the performance of the vacuum cleaner. A secondary filter protects the engine in case of accidental passage of dust through the main filters.
HEPA Filter Included
| DATA FOR SHIPPING | ||
|---|---|---|
| Vol. Packaging | Size Packaging | Weight |
| 1.26 m³ | 120x60x175 cm | 179 Kg |
| TECHNICAL | DATA | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Motor | Depress. Max mm H₂O | Volt | Hertz | Amp | Filter Surface cm² | Air Flow max m³/h | Tank | Dimensions LxAxP cm | Weight |
| SUPERVAK 200 T5 ASC | 5.5 kW | 2400 | 380/480 | 50/60 | 16 | 97000 | 640 | Bag | 137x203x60 | 159 Kg |
| SUPERVAK 200 ASC RX | 5.5 kW | 2490 | 380/480 | 50/60 | 16 | 97000 | 640 | Bag | 137x203x60 | 159 Kg |
